Product Description

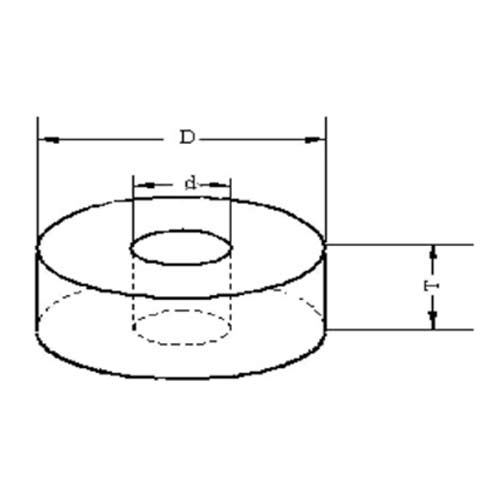

| Out line Dimensions | ||
| D[mm] | d[mm] | T[mm] |
| PZT-4 Grade Ring | ||
| 38+/-0.25 | 13+/-0.15 | 6.35+/-0.05 |
| 50+/-0.25 | 20+/-0.15 | 6.35+/-0.05 |
| PZT-8 Grade Ring | ||
| 50+/-0.25 | 20+/-0.15 | 6.00+/-0.05 |
| 38+/-0.25 | 15+/-0.15 | 5.00+/-0.05 |
| 25+/-0.25 | 10+/-0.15 | 4.00+/-0.05 |
| 25+/-0.25 | 12+/-0.15 | 3.00+/-0.05 |
| 25+/-0.25 | 12+/-0.15 | 5.00+/-0.05 |
| 38+/-0.25 | 13+/-0.15 | 6.35+/-0.05 |
| 40+/-0.25 | 20+/-0.15 | 5.00+/-0.05 |
|

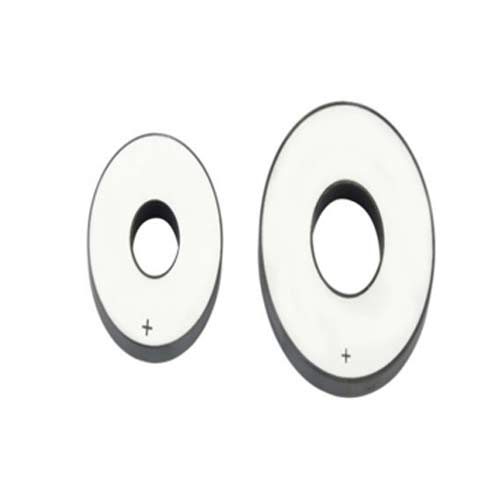

These rings are available in PZT-4 and PZT-8 Grade. PZT-4 rings are used for making transducers for ultra sonic cleaning application. Whereas PZT-8 used for making transducers for ultra sonic welding application. PZT-5 rings are also available on request. |
||
